FEATURES
Standard Size 58 mounting (58 mm diameter)
Up to 30,000 CPR
80 lb max. axial and radial shaft loading
High temperature option (100° C)
IP67 sealing available

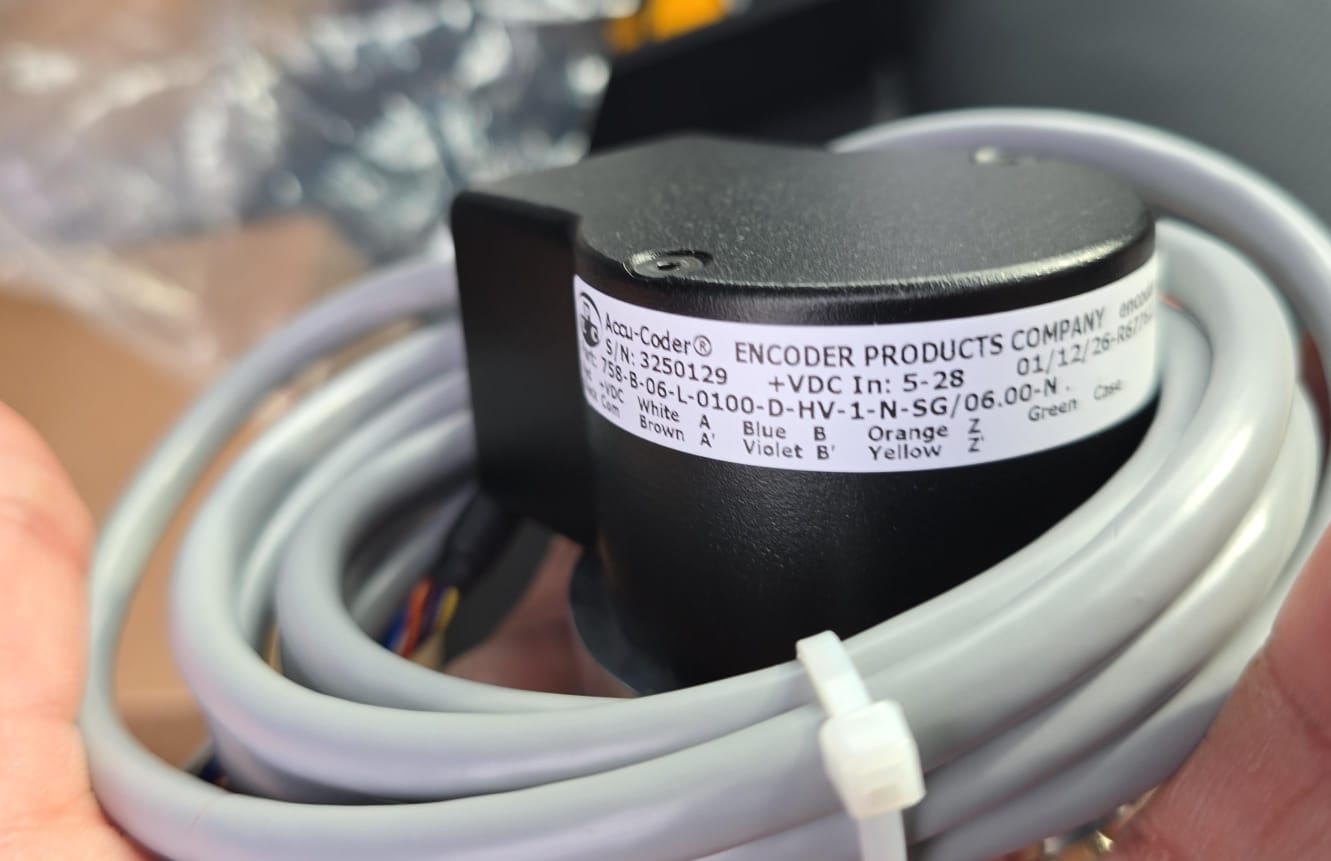

The Model 758 Size 58 Accu-Coder® is a heavy duty, extremely rugged, reliable, yet compactEuropean standard size 58 millimeter diameter encoder, designed for harsh factory and plantfloor environments.
Shaft loading is no problem for the double-shielded ball bearings; their 80 lb load rating ensures a long operating life. With the optional heavy-duty shaft seal, the Model
758 is rated IP67.
Two European standard mounting options are available: Clamping Flange (20 Type) or Synchro Flange (26 Type). The Model 758 is the perfect replacement encoder for
units requiring the European mount.
COMMON APPLICATIONS
Motion Control Feedback, Machine and Elevator Control, Food Processing, Robotics, Material
Handling, Conveyors, Textile Machines
